Under Seat Exhaust

UnderSeat Silencer + Mud Guard Modd For R15



Can the New R15 v2.0 tail be fixed to an Old R15?

Many of you wondered if this was possible? Well the answer is "YES"
The only changes are, you will need the new tail side fairings, two seats, Led Stop lights, New Mud guard. But...All hese are easy to get.
The real concern is the Bike's Frame.
Here is a link to a blog http://www.dhakdhakgo.com/?cat=89 (sorry if i am using ur diagram)

If you look at the above diagram, the new R15 v2 frame is placed higher than the old one.
That could easily be done by making a slight elevation to the sub frame. But the position of the seats with locking system would be a little difficult to achieve.





Adding of mounting points to hold the fairings is simple.
So for those who is keen on geting this done with a lot of patience is a piece of cake. This modd includes a lot of welding work. Please go to a service station and get a good look at the new frame and then proceed with the modd.
Sadly i wont be getting this modd done as the tail of my bike is damn high. (difficult for people to get on to my bike)

So, Here is my new modd,

Underseat silencer with FZ Mud guard for R15

This is just a pic showing how the silencer would rest on the new mud guard.
The FZ Mud guard is almost a direct fit for the R15.

Picture of R15  with FZ mud guard / Picture of the original R15 mud guard

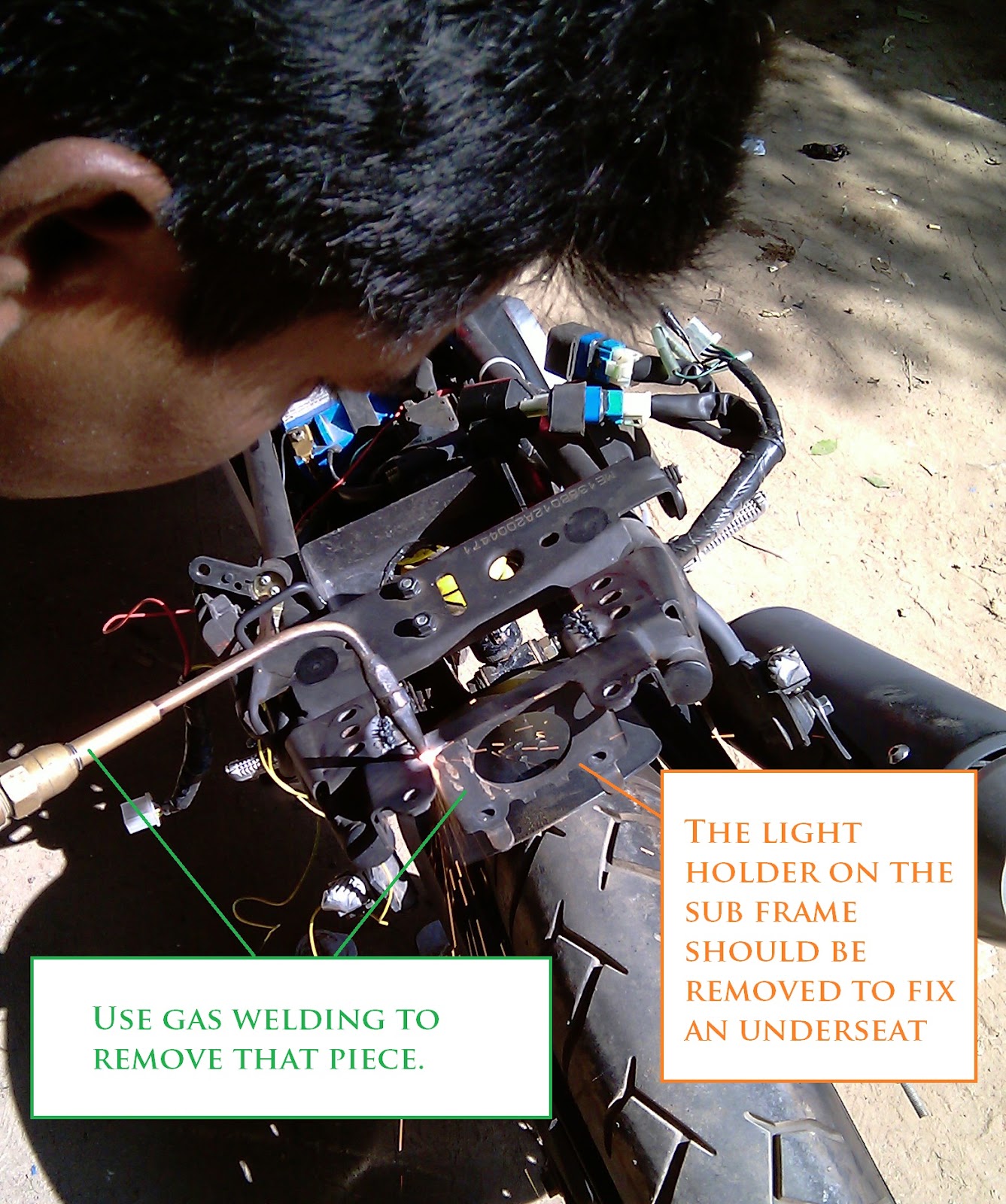

Underseat exhaust can be easily fixed on to the bike. after the frame behind the red stop light is removed.

The picture of the frame behind the stop light of R15 after removal. Now the exhaust can be easily fixed with the help of a clamp.

R15 with only FZ mud guard ......................................




Routing of the bend pipe is as shown below in the pictures,
Silencer Fixed.....
Cosmetic changes yet to be done.












A slight make over for the rear.....





58 comments:

  1. AnonymousNovember 23, 2011 at 1:51 AM

    bevin.....u r superb......!
    i rate 5 star rating for your creativity.....

    ReplyDelete
  2. thakurNovember 23, 2011 at 9:38 PM

    Thanks for ur reply bro i also want to khnow that is the swing arm of new r15 can be fitted in to old one mean to say is the swing arm pivlot are same

    thanks

    ReplyDelete
    Replies
    1. UnknownFebruary 1, 2012 at 5:43 PM

      Yes, it can be fixed, but you will have to make the frame wider because the new aluminium swing arm is slighly wider.Also you will have to change the rims tyres brakes chain etc. lot of money..

      Delete
  3. magiDecember 2, 2011 at 3:32 PM

    Very good! I think that you have done a great job! FANTASTIC!!!!
    Exhaust Silencers

    ReplyDelete
  4. UnknownDecember 3, 2011 at 4:39 PM

    Hey thank you all for your support :)
    The whole setup does not look all that good to me.. so i stil have to do some more cosmetic changes.
    More pictures soon.............

    ReplyDelete
  5. AnonymousDecember 8, 2011 at 8:17 AM

    nice blog.. Good one! There's still the other way if you'll need it... Exhaust Shops

    ReplyDelete
  6. AnonymousDecember 15, 2011 at 6:03 PM

    Great work Bevin :-)Cheers Arif

    ReplyDelete
  7. AnonymousFebruary 1, 2012 at 4:56 AM

    hey man wanted to ask if the exhaust underseat can cause any heat damage and how to prevent this? plannin to do the same. beautiful.

    ReplyDelete
    Replies
    1. UnknownFebruary 1, 2012 at 5:40 PM

      Hi,
      There is no problem with heat, just make sure your bend pipe goes over the engine and not under the engine, You get more power if it goes over the engine, Mine is currentl under the engine and i have a problem with power.
      Dont let the exhause pipe touch any plastic part. get it clamped to the metal frame.

      Delete
  8. adie atsibMarch 10, 2012 at 11:39 AM

    wow man.totaly awesome

    ReplyDelete
  9. Shreyas SaveMarch 14, 2012 at 11:47 PM

    Wow man! I'm out of words! Great work!
    Ride on.

    ReplyDelete
  10. AnonymousApril 16, 2012 at 11:19 PM

    Just professional!!

    ReplyDelete
  11. manishMay 3, 2012 at 6:51 PM

    Hi is there any thing for pulsar 135, under seat exost

    ReplyDelete
  12. manishMay 3, 2012 at 6:52 PM

    Hi is there any thing for pulsar 135, under seat exost

    ReplyDelete
  13. UnknownJune 12, 2012 at 6:11 PM

    can this mod be done on the ver 2.0 of r15 wid dual exhausts jus like the one r1 has

    ReplyDelete
    Replies
    1. UnknownJuly 15, 2012 at 6:36 PM

      dual exhausts Possible
      but single exhaust right in the middle not possible (as it might hit the swing arm)

      Delete
  14. AnonymousJuly 15, 2012 at 11:59 AM

    Hi Bevin,

    I have paid token money for this bike (r15 v2.0) at the showroom but the only thing which puzzle me is that "Can the seat be modified to that of r15 v1.0?".

    ReplyDelete
    Replies
    1. UnknownJuly 15, 2012 at 6:35 PM

      Hi, it can be done only if u change the whole back frame of the bike (which is not advisable)
      You will then need to purchase a lot of parts (added cost) and its also very risky (in case if it breaks off)

      Delete
    2. AnonymousJuly 22, 2012 at 4:35 PM

      Thanks a lot for this reply. I am getting a delivery of this bike tomorrow (hopefully). Still not sure if i will go with this bike or fz16. Anyways i will own either of the bike by tomorrow :)

      Cheers

      Delete
  15. saravana kumarAugust 6, 2012 at 4:24 PM

    can u help me out with my fz s i just wanna modify my exhaust something more sporty and noisy

    ReplyDelete
    Replies
    1. UnknownSeptember 20, 2012 at 9:13 PM

      just fix a free flow exhaust.. try conical shaped ones for sounds that match a super bike..

      Delete
  16. pankajAugust 9, 2012 at 9:31 PM

    What was the cost for all this? i would like to do it for my R15 V1.

    ReplyDelete
  17. Raja Ravi VarmaSeptember 17, 2012 at 11:40 PM

    Man this is awesome work! Excellent!

    ReplyDelete
  18. kuldeepSeptember 26, 2012 at 4:35 PM

    helllo bevin contact me as soon as possible
    kuldeep.rawat013@gmail.com
    neeed to discuss some things

    ReplyDelete
  19. kuldeepSeptember 26, 2012 at 4:35 PM

    helllo bevin contact me as soon as possible
    kuldeep.rawat013@gmail.com
    neeed to discuss some things

    ReplyDelete
  20. AnonymousNovember 15, 2012 at 2:20 PM

    hi.. needles to mention abt ur contribution.. i had a query.. can FZ16 swing arm be replaced with R15v2 split seat??

    ReplyDelete
    Replies
    1. UnknownNovember 15, 2012 at 11:22 PM

      FZ swing arm to R15 v2?
      Not possible, as R15 v2 has linked type suspension FZ has mono, so.. even if u try to fix it, the tyre will hit against the frame cos of the height difference., while the other way is possible from r15 to FZ16.

      And abt the tail. - yes its possible, but the problem is, you have to buy a frame of r15 v2 or make one similar to it and then weld it on the FZ16 original frame.

      Delete
  21. AnonymousJanuary 8, 2013 at 5:50 PM

    hey,can u tell me how did u increase the rear height ?

    ReplyDelete
  22. AnonymousJanuary 8, 2013 at 6:14 PM

    n btw can u tell me which silencer did u fix below de seat ?? n how much did it cost? reply asap !!!

    ReplyDelete
    Replies
    1. UnknownJanuary 11, 2013 at 2:27 PM

      Height got increased as i removed the linked type shocks and fixed a mono shock.. so the mono shock is longer..n moreover its welded onto the frame near the tank.. that gave the extra height to the bike..

      and abt the silencer.. its just some china free flow exhaust.. it costed abt 1800..(it has a cap that can toggle between loud n less loud noise)in case cops catch me..

      Delete
    2. AnonymousJanuary 16, 2013 at 11:17 AM

      thanks bro... n btw can u tell me how much did the monoshock cost? n is dat monoshock of FZ?

      Delete
    3. UnknownApril 28, 2013 at 6:42 PM

      this bike looks gr8 bro :) awesome
      and btw can we fit R15 v2.0 seat to Fz16

      Delete
    4. UnknownMay 6, 2013 at 8:40 PM

      @ Anonymous - yes that is FZ 16 shocks, its about 2400 rupess( i dont remember)

      @kancharla nithin - U need only the seat to be fixed? then u cannot cos it has a locking system under it.
      if ur talking abt the tail, u ll hav to do a lot of welding.. but yet it can be fixed.

      Regards,
      Bevin

      Delete
  23. piyush zambaniMarch 30, 2013 at 4:24 AM

    sir,can u plz tell me wer i can get front fairing of r15 at low price &how to fit it on cbz xtreme.i had already fitted my bike with monoshox,dual silencers,wide tyres and K&N air filter...

    ReplyDelete
    Replies
    1. UnknownMay 6, 2013 at 8:42 PM

      At low price? i really dont know. maybe try the scrap yard.. shivajinagar
      or else buy them from yamaha
      08025458883 (service centre)

      Regards,
      Bevin

      Delete
  24. AnonymousApril 23, 2013 at 10:04 PM

    Nyc but with out number plate it would hav been awsome

    ReplyDelete
    Replies
    1. UnknownMay 6, 2013 at 8:42 PM

      made a new mod with number plate ;)
      Will post pics later

      Regards,
      Bevin

      Delete
  25. AnonymousJune 11, 2013 at 10:48 AM

    Hi Bro,can the r15 frame take in a gladiator engine?

    ReplyDelete
  26. SHIKAugust 7, 2013 at 1:55 AM

    Any Such Brilliant Innovation for FZ.??

    ReplyDelete
  27. AnonymousAugust 24, 2013 at 9:46 PM

    Hi Abraham whats the price for r15 v2 tail and how much will it cost to fix r15 v2 tail to v1?? plz let me know..

    ReplyDelete
  28. AnonymousJanuary 18, 2014 at 1:37 AM

    Hello Bevin.. that is really a creative n awsum work..!!!
    Bro.. i own a Yamaha r15 V2, and i am really concerned about the pillion seat.. as its not at all comfortable. Can u please tell me if a V2's split seat can be replaced with a better seating option.... like that of V1 or FZ 16...

    ReplyDelete
  29. UnknownJanuary 28, 2014 at 12:05 PM

    Hey Bevin.. very neat work... great... i want to know about swingarm.. is it the same of r15 or its from fz.. and what is your rear tyre size...

    ReplyDelete
  30. AnonymousMarch 25, 2014 at 10:18 AM

    Hey bevin...
    nice job man, your r15 really looks like baby sbk.
    can you tell me the price of the fz16 rear fender you got?
    will I get it at any Yamaha workshop?
    thx in advance bro

    ReplyDelete
  31. AnonymousMay 9, 2014 at 6:47 PM

    Can the raised split seats of the R15 Version 2.0 be fitted on the older R15 if Yes how much amount will it cost?

    ReplyDelete
  32. RevanthMay 15, 2014 at 5:29 PM

    Hey i saw a single silencer in the bike , but i wanted to know that can we add two silencers instead of one

    ReplyDelete
  33. RevanthMay 15, 2014 at 5:30 PM

    Hey i saw a single silencer in the bike , but i wanted to know that can we add two silencers instead of one

    ReplyDelete
  34. Mahesh RajJuly 28, 2014 at 8:58 PM

    Hello Bevin,

    Excellent work, its brilliant. Thanks a lot for showcasing such a nice blog along with pics. Well, could you please suggest me on replacing the FZ16 rear seat with R15 V2 split seat, i would like to replace the entire fairings, split seat and danger light as well. Would it be possible with welding work and clamps setting? Would like to change the entire back portion of FZ to R15 V2.

    Awaiting for your response.

    Regards,
    Raj

    ReplyDelete
  35. Mayank ChaudharyApril 2, 2015 at 4:05 PM

    Nice modifications. And i saw that you have installed dual disc brakes at t he front. Does it improves the braking or its just a cosmetic modification ?

    ReplyDelete
  36. Mayank ChaudharyApril 2, 2015 at 4:05 PM

    Nice modifications. And i saw that you have installed dual disc brakes at t he front. Does it improves the braking or its just a cosmetic modification ?

    ReplyDelete
  37. hari125October 3, 2015 at 10:54 PM

    Nice modification I would like to know having an underseat silencer will it cause any discomfort to the pillion rider if we go on a long ride

    ReplyDelete
  38. UnknownOctober 21, 2015 at 6:07 PM

    Bevin Abraham

    ReplyDelete
  39. UnknownOctober 21, 2015 at 6:08 PM

    #Bevin Abraham meri bi bike r15 v1 hai merko sirf apna rear mudguard change karna hai......ho sakta hai tum hari bike ki tarah plzzz bro help me

    ReplyDelete
  40. UnknownAugust 30, 2016 at 11:28 AM

    Hi, this is raja I am also planning to do the same can I know the cost and how it sounds.

    ReplyDelete
  41. YaseenNovember 24, 2016 at 2:34 AM

    Hi Bro,
    Loved Your work can i know wat is the metal material u used around the underseat exhaust. i am in a confusion if its a part of the old tail light or u added some other thing plz reply thanks
